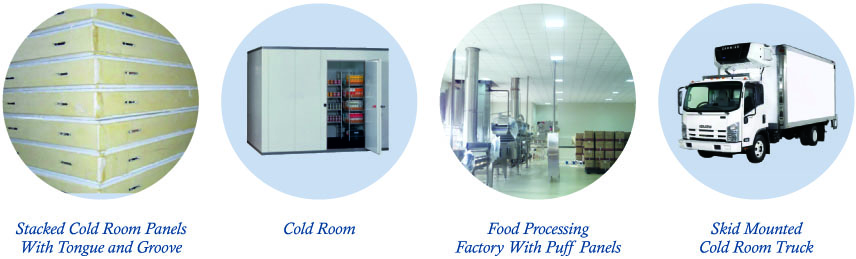

Cold Room Panel, is a factory made insulated wall panel, having metal facing combined with polyurethane foam core. The panel has a width of 1170mm with length upto 12.0 meters. The side joint is formed with tongue and groove.
.jpg)
Panel Specification
Width: 1170mm
Maximum length up to: 12 metres
Thickness of panel: 30 to 200mm
Core
Self bonding polyurethane foam
Facings
Polyester coated aluminium, aluzinc, stainless steel or FRP
Density – 40kg/m³ | K-value: 0.027w/m-k
| "U" value (W/m - °C) | |
|---|---|
| Thickness | "U" Value |
| 50mm | 0.54 |
| 100mm | 0.27 |
| 150mm | 0.20 |
| 200mm | 0.14 |
